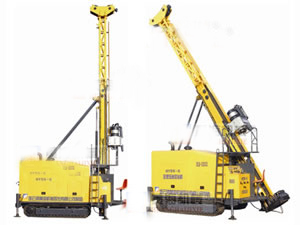

HYDX-6 Core Drilling Rig

HYDX-6 Core Drilling Rig

Description:
The HYDX-6 core drilling rig is mainly used in fields of geology, metallurgy, coal, petroleum, natural gas, and groundwater. And its main components are main winch, hydraulic pump group, main valve and hydraulic motor.

Features:
1.This core drilling rig is small in size, light in weight, flexible in operation, and convenient in operation.
2.Double-motor driving closed loop and dual-shift mechanical hydraulic stepless speed adjustment mode are designed for this core drilling rig.
3.Its mast is controlled by oil tank. It is capable of touching ground, and folding is available.
4.Load-sensing control system is used for its hydraulic system.
5.It is equipped with high-position working platform and orifice platform.
6.Hydraulic outrigger device is also equipped for it.
7.Upper centralizer and Lower guiding device are fitted in this core drilling rig.
8.Hydraulic holder is equipped for its orifice.

Technical Parameters of HYDX-6 Core Drilling Rig:

Diesel engine Model   Cummins 6CTA8.3-C240
Power 179kW
Rotational speed 2200rpm
Drilling capacity BQ 2000m
NQ 1600m
HQ 1300m
PQ 1000m
Capacity of  power head Rotation speed Two-gear stepless 0-1100rpm
Torque 6400N.m
Through-hole diameter of spindle   121mm
Max. pull force 220 KN
Max. feeding force 110 KN
Capacity of main winch Lifting force of single wireline   120 KN
Diameter of wireline   22mm
Length of wireline 60m
Capacity of wireline winch Lifting force of single wireline   15KN
Diameter of wireline 6mm
Length of wireline 2000m
Mast Total height 12m
Adjustable angle range 0°-90°
Drilling angle 45°-90°
Feeding stroke 3800mm
Sliding stroke 1100mm
Others Total weight 14500kg
Overall dimensions (L×W×H) 6250×2220×2500mm
Movement pattern Steel track self-propelled
Mud Pump Model BW320
Lower holder Clamping range 55.5-117.5mm(through-holeφ154mm)

As a professional manufacturer of core drilling rig in China, Wuxi Drlling Tools Factory still provide customers worldwide with slurry pump, HDD accessories, horizontal directional drilling rig, etc. All of our products have passed the certification of ISO9001: 2000 and API 5DP. With high quality and competitive price, our products have been well received by customers from Mongolia, Kazakhstan, Russia, Iran, Afghanistan, Oman, Turkey, Thailand, Vietnam, Myanmar, Malaysia, Indonesia, Singapore, Taiwan, Colombia, Mexico, Brazil, Canada, Australia, etc. If you're interested in our products, please contact us freely.
